Designed to complement the Fast Track Pendle range of toilet cubicles, our Pendle Vanity units are available in basin configurations up to 5 basins and for easy installation, no timber frame is required. Basin cut outs to be done on site by others – Our basins are provided with a template.
Basin shown for visual purposes and are ordered separately.
-
Sale!
-
BAILA floor-standing washbasin
Ref. 120170Floor-standing washbasin, height 830mm. Basin internal diameter: 310mm.
Design-led styling.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm.
Rounded edges prevent injury.
No tap hole.
Supplied with 1 ¼” waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg. -
Securitouch thermostatic shower kit
Ref. H964115Shower kit for exposed wall mounting:
SECURITHERM individual sequential thermostatic shower mixer (ref. H964015):
Opens and closes with cold water.
No risk of cross flow between the hot and cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
Anti-scalding failsafe: shuts off immediately if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge for adjusting the flow rate and the temperature.
– Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
– Thermal shocks are possible without removing the control knob or shutting off the cold water supply.
– Body with smooth interior and low water volume (reduces niches where bacteria can develop).
– Chrome-plated brass body and Hygiene lever L.100mm.
– M3/4″ shower outlet, top outlet.
– Mixer with inline STOP/CHECK wall connectors, M1/2″ M3/4″, ideal for hospitals.
• Fixed TONIC JET shower head:
– Chrome-plated solid brass body with tamperproof fixing.
– Scale-resistant, adjustable nozzle with no grid.
– Flow rate 6 lpm at 3 bar.
• Ø 16mm shower column with reinforced collar (fixing plate and screws included).
For M1/2″ recessed supply.
10-year warranty. -
CANAL wall-mounted wash trough
Ref. 120280Wall-mounted wash trough for 3-4 posts – L. 1,800mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 15.5kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800005). -

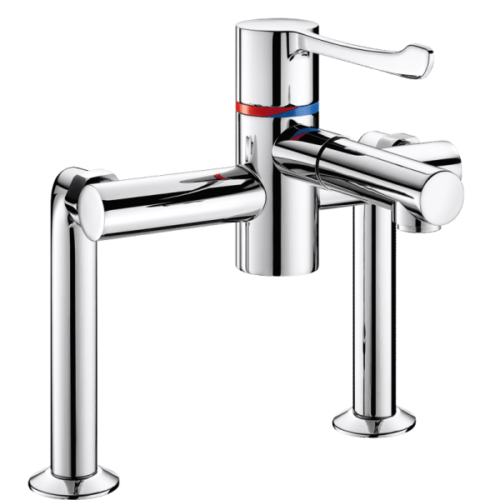

SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9615Pillar-mounted thermostatic SECURITHERM sequential sink mixer with removable BIOCLIP spout.
Comes with 2 stainless steel spouts (ref. 20003) L. 135mm Ø 28mm for complete internal cleaning/descaling.
Anti-scalding safety: hot water shuts off immediately if cold water supply fails (and vice versa).
Securitouch thermal insulation prevents burns.
No non-return valves on the inlets.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Adjustable temperature from cold water to 40°C with maximum temperature limiter set at 40°C.
Chemical and thermal shocks can be carried out.
Smooth interior body and spout, with low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Chrome-plated brass body.
10-year warranty. -
SHA 700 squat WC pan
Ref. 113620Floor-recessed squat WC pan, 700 x 345 x 700mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness 1.2mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
Bowl shape suitable for male and female use.
Non-slip foot area.
Vertical waste outlet: Ø 100mm.
Flushing system with one 304 stainless steel spreader.
Supplied with stainless steel trap welded to squat WC pan.
Weight: 8kg.
10-year warranty. -
Wall-hung DELTA urinal
Ref. 134710Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top (exposed) water inlet.
Recessed or exposed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½” P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg. -
DELTA wall-hung urinal
Ref. 134170Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top (exposed) water inlet.
Recessed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½” P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg. -
DELTA wall-hung urinal
Ref. 134770Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear (recessed) water inlet.
Recessed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½” P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg. -
Automatic hand dryer activated via optical cell, 304 stainless steel
Ref. 6631Automatically activated by optical cell.
304 stainless steel cover, bright polished finish.
Dimensions: 124 x 216 x 318mm.
Weight: 3.8kg.
Power: 1,960W. 50 Hz.
Airflow: 65 l/second.
Flow noise level: 58 dBA.
Class I, IPX1.
CE marked, TÜV GS.
3-year warranty. -
CANAL wall-mounted wash trough
Ref. 120260Wall-mounted wash trough for 2-3 posts – L. 1,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 10kg. -
LISO XL urinal divider for wall-mounting
Ref. 100600Urinal divider for wall-mounting.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Smooth surface and rounded edges.
Concealed fixings.
Supplied with fixing elements.Weight: 13kg -

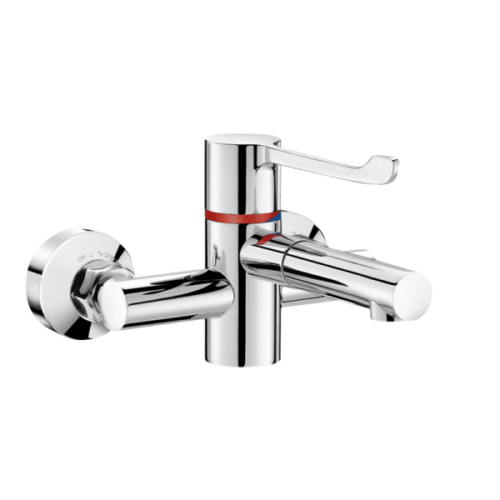

SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9611PWall-mounted SECURITHERM thermostatic sequential sink mixer with removable BIOCLIP spout.
Comes with 2 stainless steel BIOCLIP spouts (ref. 20003) L. 135mm Ø 28mm for complete internal cleaning/descaling.
Can be replaced with 10 BIOFIL filter spouts for immediate protection against waterborne infections, or 15 disposable Hostaform® spouts (recyclable) with star shaped flow straightener.
Anti-scalding failsafe: hot water shuts off immediately if cold water supply fails.
Securitouch thermal insulation prevents burns.
No non-return valves on the inlets.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Adjustable temperature from cold water to 40°C with maximum temperature limiter set at 40°C.
Chemical and thermal shocks can be carried out.
Smooth body and spout interiors, with low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with in-line STOP/CHECK connectors ideal for the needs of hospitals.
Chrome-plated brass body.
10-year warranty. -
SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9614PWall-mounted SECURITHERM thermostatic sequential sink mixer with removable BIOCLIP spout.
Comes with 2 stainless steel BIOCLIP spouts for complete internal cleaning/descaling.
Anti-scalding failsafe: hot water shuts off immediatly if cold water supply fails.
Securitouch thermal insulation prevents burns.
No non-return valves on the inlets.
Scale-resistant thermostatic sequential cartridge for single control temperature and flow-rate adjustment.
Adjustable temperature from cold water to 40°C with maximum temperature limiter set at 40°C.
Chemical and thermal shocks can be carried out.
Smooth body and spout interiors, with low water volume (reduces niches where bacteria can develop).
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 200mm centres, supplied with in-line STOP/CHECK connectors ideal for the needs of hospitals.
Chrome-plated brass body.
10-year warranty. -
Pendle CGL Box B Cubicle Partition Pack Contents:
- 2 no. 1800mm x 887mm partition sections
- 1800mm x 300mm middle hinge fascia panel
- Partition support leg and fixings
- H-Jointing strip (for partition)
- 1175mm long PVC fixing channel
- Pack of 4 T-Nut fixings
This toilet pack contains all the necessary panels and fittings to create a toilet cubicle dividing partition with a maximum depth of 1800mm.
This partition pack is for use with with Stone Grey or Plain Grey CGL toilet cubicle door packs.
- Easy to specify – every cubicle partition requires one Box B
- Fast delivery – usually delivered within 3 – 5 working days
- Responsibly sourced Compact Grade Laminate panels
- Not suitable for shower areas
- An extra Pendle CGL leg is required for the inline with return configuration.
For Free-standing cubicles, this product must be specified with the appropriate number of Box A door panels
-
Product Description
This Doc M pack is designed to provide a toilet facility with additional support for the user. The pack is compliant with the Approved Document M of the Building Regulations 2000, is WRAS and LABC approved.
TMV3 approved in-line under basin mixer valve
LABC approved
WRAS approved -
PMR recessed shower tray
Ref. 150600Recessed shower tray, 900 x 900mm.
Suitable for people with reduced mobility: slimline shower tray.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Drainage slope.
Supplied with 1 ½” waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 9.5kg. -

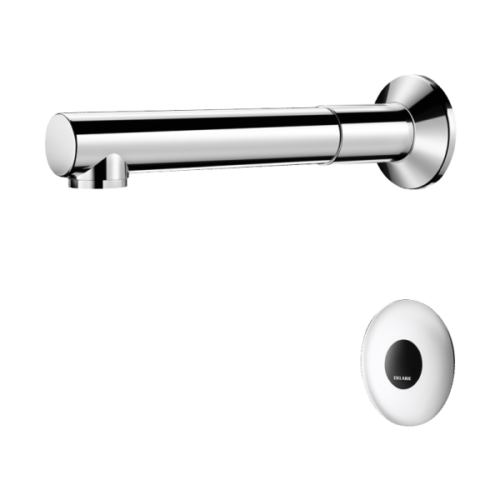

TEMPOMATIC Electronic tap
Ref. 44115715Cross wall electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 sec. every 24h after last use).
Shockproof infrared presence detection sensor for wall ≤ 165mm.
Anti-blocking safety.
Solenoid valve with filter and Ø 15mm conical inlet.
Chrome-plated fixed spout L. 170mm for wall ≤ 165mm with anti-rotating pin.
Threaded rods can be cut to size.
10-year warranty.TEMPOMATIC Electronic tap
Ref. 44115715Cross wall electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 sec. every 24h after last use).
Shockproof infrared presence detection sensor for wall ≤ 165mm.
Anti-blocking safety.
Solenoid valve with filter and Ø 15mm conical inlet.
Chrome-plated fixed spout L. 170mm for wall ≤ 165mm with anti-rotating pin.
Threaded rods can be cut to size.
10-year warranty. -
TEMPOSOFT shower panel
Ref. 749300Time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet supply for mixed water via in-line stopcock M1/2″.
TEMPOSOFT time flow control for mixed water.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filter.
10-year warranty. -

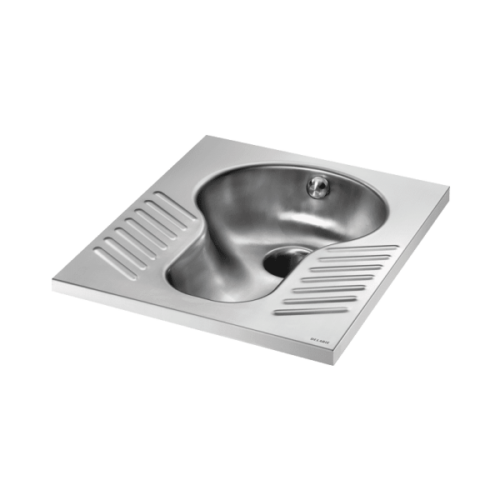

SHA XS squat WC pan
Ref. 113720Floor-recessed squat WC pan, 500 x 325 x 600mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness 1.2mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
Bowl shape suitable for male and female use.
Non-slip foot area.
Vertical waste outlet: Ø 100mm.
Flushing system with one 304 stainless steel spreader.
Supplied with stainless steel trap welded to squat WC pan.
Weight: 7kg.
10-year warranty. -
TEMPOMATIC electronic tap for sinks with BIOCLIP removable spout
Ref. 20804T215Wall-mounted electronic tap with BIOCLIP spout, for mounting on panels < 20mm.
Independent IP65 electronic control unit (integrated 230/12V transformer).
Flow rate limited to 5 lpm at 3 bar.
Comes with 2 removable stainless steel spouts L. 188mm Ø 28mm.
Base and spout with smooth interiors (reduces niches where bacteria can develop).
Adjustable duty flush (pre-set to approx. 60 secs every 24h after last use) in order to prevent water stagnation in the network in the event of prolonged periods of non-use.
Separate sensor for mounting on panels.
Solenoid valve Ø 15mm for compression fittings with integrated filter.
Shock-resistant infrared presence detection sensor.
Chrome-plated Ø 60mm brass base.
Anti-blocking security.
Recommended installation height: 110-200mm above the basin surface.
Two shut-off options:
– standard mode: timed flow with automatic shut-off.
– ON/OFF mode: user shuts off flow voluntarily after 30 minutes.
Thermal shocks are possible.
10-year warranty. -
Product Description
This Doc M pack is designed to provide a toilet facility with additional support for the user. The pack is compliant with the Approved Document M of the Building Regulations 2000, is WRAS and LABC approved.
The pack contents include:
5 x 600mm Steel Grab Rails
1 x 800mm Lift & lock steel hinged Rail
1 x Close coupled WC pan & cistern assembly
1 x Ring only toilet seat with stainless hinge
1 x Two tap hole basin & fittings
1 x Basin mixer tap
1 x Spatula cistern lever
1 x TMV3 in-line thermostatic valve -
TEMPOFIX 3 frame system for urinals
Ref. 543006D
Frame system for urinal with flexible ½”, kit ½:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal.
Tube with ½” brass connection for urinals with flexible inlet.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 – 120mm.
Supplied with recessed housing.
Valve configured for system flush, with accessories and connection protection..
30-year warranty. -
TEMPOFIX 3 frame system for urinals
Ref. 543006
Frame system for urinals Ø 35mm, kit 1/2:
Black powder-coated steel frame for wall-mounted installation.
Fixes to floor and load-bearing walls with anchoring bolts supplied.
Adjustable bracket from 95 – 280mm.
Frame height can be adjusted from 0 to 200mm.
Ø 50mm soil pipe with waterproof seal and tube with connection washer Ø 35mm.
Delivered pre-mounted.
Compatible with solid wall finishes from 13 to 120mm.
Supplied with recessed housing
Valve configured for system flush, with accessories and connection protection.
30-year warranty.
Order with control plate references 430006, 430016, 430026, 430036, 778700 or 778707. -
Countertop ALGUI washbasin
Ref. 120110Countertop washbasin, Ø 375mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Polished satin finish.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼” waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3.8kg. -
LISO urinal divider for wall-mounting
Ref. 100590Urinal divider for wall-mounting.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Smooth surface and rounded edges.
Concealed fixings.
Supplied with fixing elements.
Weight: 8kg. -
TEMPOMATIC shower kit
Ref. 452159Cross wall electronic shower kit:
TEMPOMATIC electronic valve for mixed water supply.
For walls ≤ 155mm.
Power supply by electronic unit with solenoid valve 1/2″.
230/12V transformer.
2 operation modes:
– Automatic activation via presence detection.
– Voluntary ON/OFF activation by passing the hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Chrome-plated solid brass.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.
10-year warranty. -
BINOPTIC electronic tap
Ref. 39801515Deck-mounted electronic basin tap:
Independent IP65 electronic control unit.
230/12V mains supply with transformer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 – 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexible with filter and solenoid valve Ø 15mm.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Drop height 250mm, for countertop wasbasins.
Suitable for people with reduced mobility.
10-year warranty. -
TEMPOMIX shower kit
Ref. 796209Time flow shower kit for cross wall installation:
TEMPOMIX 3/4″ single control mixer.
For walls ≤ 220mm.
Temperature control and operation via the push-button.
Maximum temperature limiter (adjustable by the installer).
Ligature-resistant collar.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated ROUND shower head, tamperproof with scale-resistant nozzle and automatic flow rate regulation.
Integrated non-return valves and filters.
Chrome-plated metal push-button.
Threaded rods can be cut-to-size.
10-year warranty. -
Be-Line drop-down support rail with leg, L. 850mm, matte black
Ref. 511963BK
Be-Line® drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 850 x 825 x 120mm.
Leg height can be adjusted from 760 – 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rail with 30-year warranty.
CE marked. -
MINI BAILA wall-mounted washbasin
Ref. 121180Wall-mounted washbasin. Basin internal diameter: 310mm.
Design-led styling.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 11/4″ waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.1kg. -
MINI BAILA wall-mounted washbasin
Ref. 120180Wall-mounted washbasin. Basin internal diameter: 310mm.
Design-led styling.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm.
Rounded edges prevent injury.
Without tap hole.
Supplied with 11/4″ waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.1kg. -
PMR recessed shower tray
Ref. 150500Recessed shower tray, 800 x 800mm.
Suitable for people with reduced mobility: slimline shower tray.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Drainage slope.
Supplied with 1 ½” waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 8.5kg. -
HIGHFLOW high-speed hand dryer
Ref. 510622HIGHFLOW air pulse hand dryer.
Robust model.
Lit central nozzle focuses the pulsed air onto hands at over 230km/h.
High speed: dries in 10 – 12 seconds.
Choice of warm or cold air via a concealed switch.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 60 seconds.
Bacteriostatic 304 bright polished stainless steel.
Easy to clean: one-piece cover.
Stainless steel thickness: 1mm.
Dimensions: 175 x 238 x 267mm.
Weight: 4kg.
Airflow: 39 l/second.
Air speed: 230 km/h.
Low energy consumption: 1350W.
220-240 V~/50Hz.
Noise level: 70 dBA.
Class I, IP22.
CE marked.
3-year warranty. -
FINO WF water-free urinal
Ref. 135010Wall-hung individual water-free urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Recessed horizontal waste outlet.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
1½” waste outlet.
Supplied with a silicone membrane to prevent bad smells.
Supplied with fixing elements.
Weight: 3.5kg. -
Control plate for TEMPOMATIC 4 for urinals
Ref. 430036
TEMPOMATIC 4 electronic valve F½”, kit 2/2.
Battery-operated with CR 123 Lithium 6V batteries.
Solenoid valve enables opening and closing of water.
Black control plate 145 x 145mm in shock-resistant vitro-ceramic glass with integrated electronics.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
3 programmes (rinsing volume can be adjusted according to urinal type).
High frequency mode (exclusive to DELABIE):
– Short rinse after each user.
– Additional rinse after the period of increased frequency of use.
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after last use: prevents vacuums.
Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
TEMPOMATIC 4 F½” valve compatible with sea water, rain water and grey water.
Installation in waterproof housing with waterproof collar, transformer, filter and stopcock.
Suitable for people with reduced mobility.
30-year warranty.Order with frame system references 543006 for urinals Ø 35mm, 543006D for urinals with flexible ½” or with recessed housing 430PBOX. -
Customs Collection
The Customs Collection offers a truly bespoke design solution. Choose from our library of stunning designs. Note: Delivery on all decors is 3-4 weeks.
-
Customs Collection
The Customs Collection offers a truly bespoke design solution. Choose from our library of stunning designs. Note: Delivery on all decors is 3-4 weeks.
-
Customs Collection
The Customs Collection offers a truly bespoke design solution. Choose from our library of stunning designs. Note: Delivery on all decors is 3-4 weeks.
