Floor-standing janitorial unit
Ref. 180140
Floor-standing janitorial unit.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
Smooth surface for easy cleaning.
Adjustable feet height up to 25mm.
With tap hole Ø 35mm on right side.
Supplied with 1 ¼” waste for washbasin and 1½” for disposal sink. Without overflow.
Hinged stainless steel bucket grid.
Weight: 22kg.
S21 P TC floor-standing WC pan
Ref. 160550
Floor-standing WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece, pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths available on request).
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 13.5kg.
S21 P floor-standing WC pan
Ref. 110300
Floor-standing WC pan, 360 x 400 x 580mm.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORXsecurity screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14kg.
10-year warranty.
Be-Line® WC pack with backrest
Product Code: 511809
DOC M Be-Line® WC pack suitable for commercial washrooms with 1 backrest, 1 drop-down support rail and 4 grab bars.
Aluminium tube.
Full pack contents below
Available in Metallised Anthracite or Matt White
Tested to over 200kg.
Maximum recommended user weight 135kg.
30-year warranty.
CE marked.
DOC M compliant.
BCN P floor-standing stainless steel pan
Ref. 110100
Floor-standing WC pan, 360 x 400 x 580mm.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal or vertical waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 12kg.
10-year warranty.
S21 S TC wall-hung WC pan
Ref. 160310
Wall-hung WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths are available on request).
Shrouded WC pan.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 11kg.
Wall-hung S21 S WC pan
Ref. 110310
Wall-hung WC pan, 360 x 350 x 535mm.
Compatible with all standard frame systems available on the market.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 11kg.
10-year warranty.

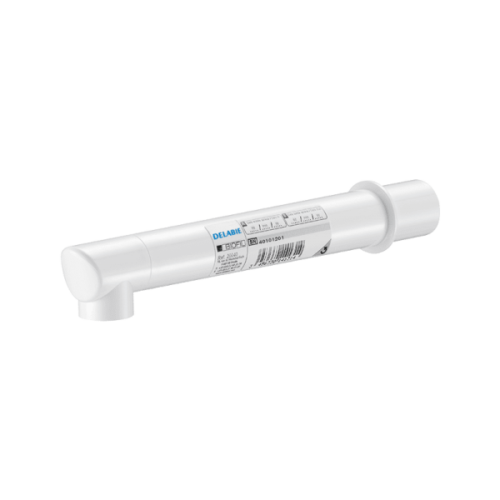

Anti-bacterial BIOFIL spout filter
Ref. 20040.10P
Single use removable BIOFIL anti-bacterial spout, sterilising grade 0.1μm absolute-rated.
Can be installed instead of BIOCLIP spouts.
Hydrophilic polyethylene hollow fibres.
Filtration area: 1,200cm².
Filtration flow rate: 6 lpm at 3 bar (filter only, excludes any flow rate restrictor/regulator in the mixer).
Maximum upstream pressure at point-of-use: 5 bar.
Length of maximum use: 62 days after installation.
Compatible with and resistant to chemical and thermal shocks.
CE class 1 sterile anti-bacterial filters.
Weight: 40g.
Supplied in boxes of 10, individually wrapped, sterile.

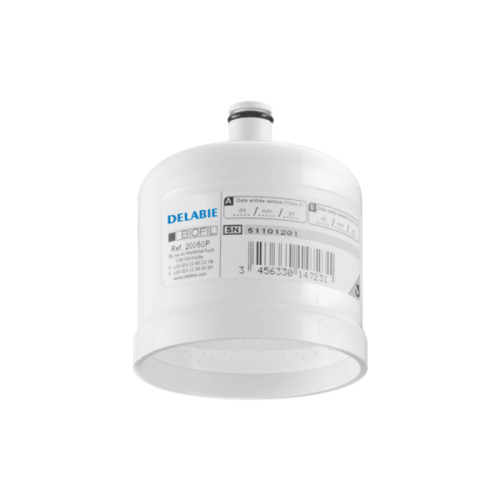

Anti-bacterial BIOFIL cartridge filter
Ref. 20050P.10P
Single use BIOFIL anti-bacterial cartridge P with sterilising grade of 0.1μm absolute-rated.
Filter cartridge with waterproof seal and with rain effect spray.
Hydrophilic polyethylene hollow fibres.
Filtration area: 1,400cm².
Filtration flow rate: 12 lpm at 3 bar (filter only, excludes any flow rate restrictor/regulator in the shower).
Maximum upstream pressure at point-of-use: 5 bar.
Length of maximum use: 62 days after installation.
Compatible with and resistant to chemical and thermal shocks.
CE class 1 sterile anti-bacterial filters.
Weight: 80g.
Supplied in boxes of 10, individually wrapped, sterile.

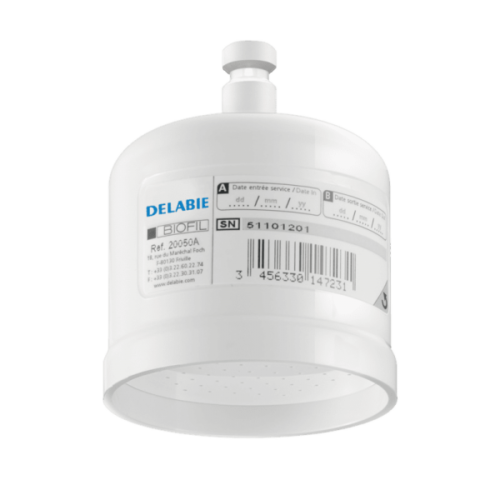

Anti-bacterial BIOFIL cartridge filter
Ref. 20050A.10P
Single use BIOFIL anti-bacterial cartridge A with sterilising grade of 0.1μm absolute-rated.
Filter cartridge without waterproof seal and with rain effect spray.
Hydrophilic polyethylene hollow fibres.
Filtration area: 1,400cm².
Filtration flow rate: 12 lpm at 3 bar (filter only, excludes any flow rate restrictor/regulator in the shower/mixer outlet).
Maximum upstream pressure at point-of-use: 5 bar.
Length of maximum use: 62 days after installation.
Compatible with and resistant to chemical and thermal shocks.
CE class 1 sterile anti-bacterial filters.
Weight: 80g.
Supplied in boxes of 10, individually wrapped, sterile.
LP individual urinal
Ref. 130300
Floor-standing urinal.
Bacteriostatic 304 stainless steel.
Polished satin stainless steel.Stainless steel thickness: 1.2mm
Rear water inlet.
Central drainage.
Supplied with 1 stainless steel rinser and a flexible hose.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½”. Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 15.2kg.
Length: 600mm.
This Doc M pack is designed to provide a toilet facility with additional support for the user.
Complies with Doc M of the Building Regulations
TMV3 approved in-line under basin mixer valve
LABC approved
WRAS approved Includes concealed cistern
TEMPOMATIC multi-urinals urinal valve
Ref. 487620
TEMPOMATIC electronic valve with infrared barrier for urinals:
Rinsing for 1 – 8 urinals (standard or stall) or 2 siphon action urinals.
For recessed installation.
Electronic unit with 230/12V transformer.
Hydraulic unit with solenoid valve, stopcock M3/4″ and filter.
Hygienic duty flush every 12hr after last use, prevents vacuums in the siphon.
Presence detection by infrared barrier.
Recessed Infrared detector Ø 50mm and reflector Ø 85mm.
Automatic pre-rinse possible after the arrival of the first user.
Automatic rinse every 30 or 60 sec.
Time flow pre-set at 3 sec., can be adjusted from 2 to 14 sec.
Flow rate 0.3 l/sec. at 3 bar pressure, can be adjusted.
Maximum detection range recommended: 6 meters.
Anti-blocking safety: automatic shut-off after 20 uninterrupted cycles.
10-year warranty.
SECURITHERM shower panel
Ref. 792310UK
Thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles.
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 41°C with maximum temperature limiter.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head and automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
10-year warranty.
SECURITHERM shower panel
Ref. 79230015
Time flow thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
SECURITHERM thermostatic mixer.
Adjustable temperature: from cold water to 41°C using the temperature control.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
10-year warranty.
Wall-mounted CANAL wash trough
Ref. 120310
Wall-mounted wash trough for 4 posts – 3000mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, lightweight wash trough.
Drainage on the right.
Without tap hole.
Supplied with 1½” waste.
Without overflow.
Supplied with fixings and fixing brackets.
CE marked. Complies with European standard EN 14296.
Weight: 19 kg.
Option to add a bacteriostatic 304 stainless steel splashback (ref. 100310).
Single L stall urinal
Ref. 130200
Trough urinal for recessing in the floor.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet. Central drainage.
Supplied with 1 stainless steel rinser and 1 flexible hose.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 11/2″. Supplied with waste and integrated trap (ref. 785000).
Weight: 16.8kg.
Wall-hung BCN S WC pan
Ref. 110110
Wall-hung WC pan, 360 x 375 x 550mm.
Compatible with all standard frame systems available on the market.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steelblanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steelmounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 12kg.
10-year warranty.
This Doc M pack is designed to provide a toilet facility with additional support for the user.
Complies with Doc M of the Building Regulations
TMV3 approved in-line under basin mixer valve
LABC approved WRAS approved
Rust-resistant grade 304 stainless steel
Grab Rails
Hand dryer automatically activated by optical cell, with 360° nozzle
Ref. 6614
Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
Polished satin 304 stainless steel cover.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W.50-60 Hz.
Air flow: 95 l/sec.
Low noise level: 68 dBA.
Class II maximum security (double insulated electrical appliance), IP23.
CE, TÜV GS.
Warranty: 3 years.
Hand dryer automatically activated by optical cell, with 360° nozzle
Ref. 6613D
Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
Cover 304 stainless steel, bright polished finish.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W. 50-60Hz.
Airflow: 95 l/second.
Low noise level: 68 dBA.
Maximum safety, Class II insulation(double electrical insulation), IP23.
CE marked, TÜV GS.
3-year warranty.
SECURITHERM shower panel
Ref. H9635
SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated rail with flexible hose.
Hygiene control lever L. 100mm.
Concealed supply via M1/2″ flexibles.
Concealed fixings and filters.
10-year warranty.
SECURITHERM shower panel
Ref. H963615
SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non-time flow).
Temperature control from cold water up to 39°C.
Temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on chrome-plated rail with flexible shower hose removable with push fit rapid STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2″ inline stopcocks.
Concealed fixings and filters.
10-year warranty.
Ref. 511804MW
Ref. 511804MC
Wall-hung trough urinal
Ref. 130100
Wall-hung trough urinal.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F1/2″. Drainage on the right.
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsingof urinal surface.
Vertical waste outlet.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½”.
Supplied with fixing elements.
Without trap.
Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 17.5kg.
Length: 1200mm
CANAL wall-mounted wash trough
Ref. 120300
Wall-mounted wash trough for 4 posts – 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole & tap hole variations.
Supplied with 1 ½” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
AQUEDUTO wall-mounted washbasin
Ref. 120150
Wall-mounted washbasin, 700x440mm.
Simple and timeless design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
.Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.
Hand dryer automatically activated by optical cell, with 360° nozzle
Ref. 6615
Automatic hand dryer.
Vandal-resistant model.
Automatically activated via optical cell.
360° rotating nozzle.
Metal thickness: 1.2mm.
White, enamelled cast steel cover.
Dimensions: 210 x 280 x 220mm.
Weight: 3.5kg.
Power: 2,000W.50-60 Hz.
Air flow: 95 l/sec.
Low noise level: 68 dBA.
Class II maximum security (double insulated electrical appliance), IP23.
CE, TÜV GS.
Warranty: 3 years.
TEMPOMATIC shower panel
Ref. 452310
Electronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexible, M1/2″.
TEMPOMATIC electronic mixer for mixed water supply.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is at 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filter.
10-year warranty.
TEMPOMATIC shower panel
Ref. 452300
Electronic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcock, M1/2″.
TEMPOMATIC electronic mixer for mixed water supply.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is at 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filter.
10-year warranty.

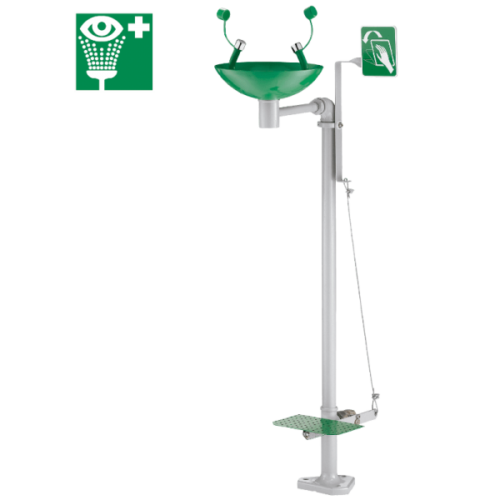

Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1″.
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: “Eye Wash”.
10-year warranty.
Shower panel
Ref. 79130015
Mechanical shower panel with single control mixer and fixed shower head:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks and conical Ø 15mm inlets.
Non-time flow mechanical mixer.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters.
10-year warranty.
Floor-standing disposal sink
Ref. 180150
Floor-standing disposal sink.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
One-piece pressed bowl, seam-free.
Smooth surface is easy to clean.
Adjustable feet height up to 40mm.
Supplied with 1½” waste. Without overflow.
Hinged stainless steel bucket grid.
Weight: 10.6kg.
Floor-standing ILHA drinking fountain
Ref. 180100
Floor-standing drinking fountain.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 0.8mm.
Height: 915mm.
Supplied with bubbler tap: chrome-plated, instant shut-offand adjustable flow rate, inlet M3/8″.
Flat perforated waste, without screws:easy to clean and vandal-resistant.
Recessed vertical water outlet. Waste outlet 1¼”.
Supplied with fixing elements.
Weight: 9.6kg.
SECURITHERM shower panel
Ref. H963915
SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Hygiene control lever L. 100mm.
Top inlets with M1/2″ stopcocks.
With copper tails.
Concealed fixings and filters.
10-year warranty.
This Doc M pack is designed to provide a toilet facility with additional support for the user. The pack is compliant with the Approved Document M of the Building Regulations 2000, is WRAS and LABC approved.
The pack contents include:
5 x 600mm Steel Grab Rails
1 x 800mm Lift & lock steel hinged Rail
1 x Close coupled WC pan & cistern assembly
1 x Ring only toilet seat with stainless hinge
1 x Two tap hole basin & fittings
1 x Basin mixer tap
1 x Spatula cistern lever
1 x TMV3 in-line thermostatic valve
Note:Image shows white grab rails – finish options available in Satin or Polished Stainless Steel
Wall mounted MINERALCAST PMR washbasin
Ref. 132306
Wall-mounted washbasin, 785 x 545 x 150mm.
With integral side grips, can be used to support user or as a towel rail.
Sleek and fluid lines.
MINERALCAST: a composite material consisting of natural minerals and polyester resin.
Suitable for use in public and commercial places and the healthcare sector.
Shallow washbasin ideal for people with reduced mobility.
Uniform, non-porous surface is easy to clean.
One-piece pressed washbasin, seam-free, for easy maintenance and better hygiene.
Warm to the touch.
With Ø 35mm central tap hole.
Without overflow.
Supplied with fixing elements.
White, RAL 9016.
Weight: 21.5 kg.
Floor-standing ILHA JR drinking fountain
Ref. 180110
Floor-standing drinking fountain.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.5mm.
Height: 800mm for children.
Supplied with bubbler tap: chrome-plated, instant shut-offand adjustable flow rate, inlet M3/8″.
Flat perforated waste, without screws:
easy to clean and vandal-resistant.
Recessed vertical water outlet. Waste outlet 1¼”.
Supplied with fixing elements.
Weight: 9kg.
Designed to complement the Fast Track Pendle range of toilet cubicles, our Pendle Vanity units are available in basin configurations up to 5 basins and for easy installation, no timber frame is required. Basin cut outs to be done on site by others – Our basins are provided with a template.
Basin shown for visual purposes and are ordered separately.
Made to order. Please allow 7-10 working days
COMPANY INFORMATION
01924 457600
Mon-Thursday 8.30am – 5pm
Friday: 8.30am – 3pm
OUR POLICIES
SECURE PAYMENTS BY
Registered in England: 06851971 | VAT no. 380618882 | © Plumbware.co.uk Ltd 2009 - 2024
