Be-Line® recessed shower pack from Delabie
Product Code: 511MREC1 / 511MREC2
DOC M recessed shower pack suitable for Commercial Washrooms featuring SECURITHERM single lever sequential thermostatic recessed shower mixer with angled outlet.
Grab rails, handles and hooks available in Metallised Anthracite or Matte White.
Pack comprises of 19 items – see below for full list.
30-year warranty.
CE marked.
Be-Line® exposed shower pack from Delabie
Product Code: 511MEXP1 / 511MEXP2
DOC M exposed shower pack suitable for Commercial Washrooms featuring SECURITHERM single lever sequential thermostatic recessed shower mixer with top outlet.
Grab rails, handles and hooks available in Metallised Anthracite or Matte White.
Pack comprises of 19 items – see below for full list.
30-year warranty.
CE marked.
KOMPACT washbasin and wall-hung WC combination
Ref. 160500
Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2″.
WC equipped with time flow flush valve, 7 second time flow, M3/4″.
Water inlet: washbasin M1/2″, WC M3/4″.
Recessed horizontal water outlet: Ø 100mm
Supplied with washbasin siphon.
Easy installation: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg
KOMPACT washbasin and floor-standing WC combination
Ref. 160800
Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2″.
WC equipped with time flow flush valve, 7 second time flow, M3/4″.
Water inlet: washbasin M1/2″, WC M3/4″.
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
Surgical scrub-up trough with high upstand
Ref. 187000
Wall-mounted surgical scrub-up trough with 450mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 2,100mm, 3 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
“Hygiene+” design: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow.
Supplied with fixing elements.Weight: 48.5kg.
Surgical scrub-up trough with low upstand
Ref. 187020
Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 2,100mm, 3 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
“Hygiene+”: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 37.6kg.
Surgical scrub-up trough with high upstand
Ref. 186000
Wall-mounted surgical scrub-up trough with 450mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 1,400mm, 2 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
“Hygiene+” design: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow.
Supplied with fixing elements.Weight: 34.4kg.
* We recommend a PREMIX mixer.
Surgical scrub-up trough with low upstand
Ref. 186020
Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 1,400mm, 2 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
“Hygiene+”: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 26.6kg.
MINERALCAST wash trough
1400mm wide (see Spec Drawing)
Ref. 453140
Wall-mounted wash trough, 3 services.
MINERALCAST: composite material consisting of natural minerals and polyester resin.
Ideal for use in public and commercial places, especially schools.
Uniform, non-porous surface is easy to clean.
One-piece cast wash trough, seam-free, for easy maintenance and better hygiene.
Warm to the touch.
With incline to prevent water pooling.
With central tap hole Ø 35mm.
Supplied with three 1¼” wastes. Without overflow.
Supplied with fixing elements.
White, RAL 9016.
Weight: 63kg.
Surgical scrub-up trough with high upstand
Ref. 185000
Wall-mounted surgical scrub-up trough with 450mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 700mm, 1 service. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
“Hygiene+” design: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow.
Supplied with fixing elements.Weight: 20.3kg.
Wall-mounted wash trough.
1800mm wide (see spec drawing)
3 posts.
MINERALCAST: composite material consisting of natural mineralsand polyester resin.
Ideal for use in public and commercial places.
Uniform, non-porous surface is easy to clean.
One-piece cast washbasin, seam-free, for easy maintenanceand better hygiene.
Pleasant to the touch.
With no tap hole.
Supplied with 1½” waste. Without overflow.
Supplied with fixing elements.
White, RAL 9016.
Weight: 90kg.
MINERALCAST pedestals in anthracite also available, sold individually
Ref. 510207
This Doc M pack is designed to provide additional support for the user. The pack is compliant with the Approved Document M of the Building Regulations 2000, is WRAS and LABC approved.
Features include:
Concealed TMV3 thermostatic mixer shower with extended lever
Non-corrosive stainless steel grab rails
Complies with Doc M of the Building Regulations
WRAS approved
Simple one box solution
*Image for reference only – grab rails available in Polished or Satin Stainless Steel
This Doc M pack is designed to provide additional support for the user. The pack is compliant with the Approved Document M of the Building Regulations 2000, is WRAS and LABC approved.
Features include:
Concealed TMV3 thermostatic mixer shower with extended lever
Non-corrosive stainless steel grab rails
Complies with Doc M of the Building Regulations
WRAS approved
Simple one box solution
LP trough urinal
Ref. 130320
Floor-standing trough urinal.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Central drainage.
Supplied with 3 stainless steel rinsers and 3 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½”. Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 33.5kg.
Length: 1800mm
Surgical scrub-up trough with low upstand
Ref. 185020
Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 700mm, 1 service. Without tap hole.
Smooth surface for easy cleaning.
“Hygiene+”: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 15.6kg.
This Doc M pack is designed to provide additional support for the user. The pack is compliant with the Approved Document M of the Building Regulations 2000, is WRAS and LABC approved.
Features include:
Concealed TMV3 thermostatic mixer shower with extended lever
Non-corrosive stainless steel grab rails
Complies with Doc M of the Building Regulations
WRAS approved
Simple one box solution
L trough urinal
Ref. 130220
Floor-standing recessed trough urinal.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Supplied with 3 stainless steel rinsers and 3 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 11/2″. Supplied with waste and integrated trap (ref. 785000).
Weight: 34kg.
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.
MONOBLOCO S21 WC pan with cistern
Ref. 110390
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 815 x 620mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 21kg.
10-year warranty.
Wall-mounted XL S disposal sink
Ref. 182160
Wall-mounted disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Smooth surface for easy cleaning.
Concealed perimetral flushing system.
Horizontal water inlet: Ø 55mm.
Recessed horizontal waste outlet: Ø 100mm.
Concealed drainage: shrouded sink.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Hinged stainless steel bucket grid.
Supplied with fixing elements.
Weight: 15kg.
Floor-standing XL P disposal sink
Ref. 182070
Floor-standing disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Smooth surface is easy to clean.
Concealed perimetral flushing system.
Horizontal or vertical water inlet: Ø 55mm.
Horizontal or vertical water outlet: Ø 100mm.
Supplied with PVC pipe.
Concealed drainage: shrouded sink.
Quick and easy to install: 2 access panels
with theft prevention TORX security screws.
Hinged stainless steel bucket grid.
Weight: 16kg.
Wall-mounted wash trough for wall-mounting, for 2 services.
MINERALCAST: composite material consisting of natural mineralsand polyester resin.
Ideal for use in public and commercial places.
Uniform, non-porous surface is easy to clean.
One-piece cast washbasin, seam-free, for easy maintenanceand better hygiene.
Pleasant to the touch.
With no tap hole.
Supplied with 1 ½” waste. Without overflow.
Supplied with fixing elements.
White, RAL 9016.
Weight: 64kg.
MINERALCAST pedestals in anthracite also available, sold individually
A complete urinal pack that includes everything you need. Choose how many urinals are required and then a choice between an exposed or concealed cistern.
Please note: Due to it’s fragile nature, this product will be delivered on a pallet at a cost of £60.
TRIPLO RP wall-mounted multiple washbasin
Ref. 120750
Wall-mounted triple washbasin, 1,800x500mm.
With an upstand to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin stainless steel.
Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼” waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 22kg.
LP trough urinal
Ref. 130310
Floor-standing trough urinal.
Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm
Rear water inlet. Central drainage.
Supplied with 2 stainless steel rinsers and 2 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½”. Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 24.2kg.
700 P floor-standing WC pan
Ref. 110700
Floor-standing WC pan, 360 x 480 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 15kg.
10-year warranty.

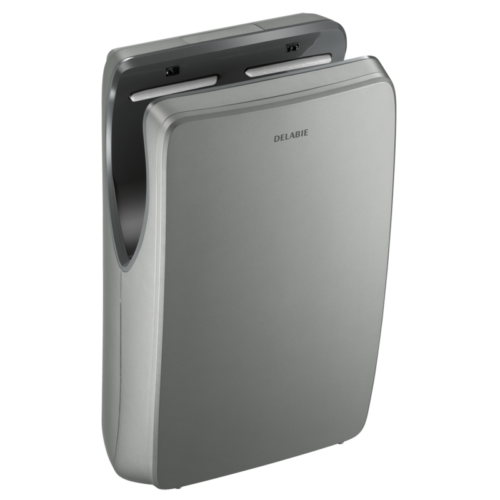

SPEEDJET 2 high speed hand dryer, with HEPA filter, no tank
Ref. 510623C
Be-line removable lift-up shower seat for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Matte white aluminium finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
10-year warranty. CE marked.
This Doc M pack is designed to provide a toilet facility with additional support for the user.
Complies with Doc M of the Building Regulations
TMV3 approved thermostatic mixer tap
Rust-resistant grade 304 stainless steel Grab Rails with concealed fixings Includes concealed cistern and frame
WRAS approved
Wall-hung WC pan, 360 x 350 x 700mm.
Available with 700mm elongated pan for improved comfort for peoplewith reduced mobility (700 S).
Compatible with all standard frame systems available on the market.Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded WC pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14.5kg.
10-year warranty.
L trough urinal
Ref. 130210
Floor-recessed trough urinal.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet. Central drainage.
Supplied with 2 stainless steel rinsers and 2 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 11/2″. Supplied with waste and integrated trap.
Weight: 25.4kg.

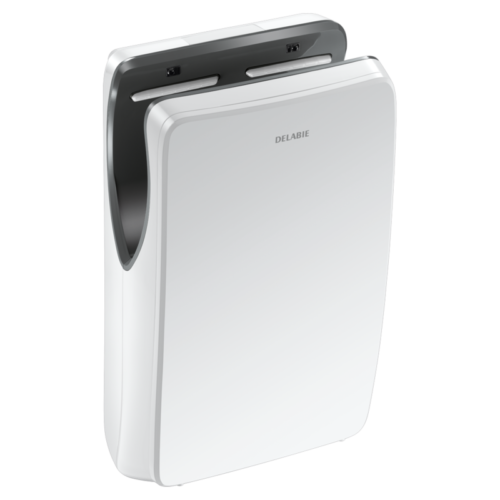

SPEEDJET 2 high speed hand dryer, with HEPA filter, no tank
Ref. 510623W
SPEEDJET 2 matte white two-way air pulse hand dryer.
High speed: dries in 10 to 12 seconds.
Comfort: warm air.
Antibacterial ABS for maximum hygiene.
Easy to clean and service: residual water on hands is eliminated with new automatic procedure using evaporation and sterilisation.
Features system that removes the need for a drip tray and prevents water reaching the wall or floor.
HEPA filter: prevents 99.99% of airborne bacteria.
Infrared automatic activation.
Intelligent technology: stops automatically when hands are removed.
Anti-blocking: stops automatically if used continuously for more than 30 seconds.
Dimensions: 180 x 320 x 540mm.
Weight: 7.2kg.
Energy saving: heating element stops automatically once temperature reaches > 25°C.
Low energy consumption: 1,050W in non-heating mode,1,550W in heating mode.
220-240V~ / 50-60 Hz.
Airflow: 61 l/second. Air speed: 540 km/h.
Noise level: 66 dBA.
Class II, IP21.
CE marked.
3-year warranty.
This Doc M pack is designed to provide a toilet facility with additional support for the user.
This Doc M pack complies with Doc M of the Building Regulations
TMV3 approved in-line under basin mixer valve
WRAS approved Includes concealed cistern and frame
SPEEDJET high-speed hand dryer, with filters and drip tray
Ref. 510621
SPEEDJET metallic grey two-way air pulse hand dryer.
High speed: dries in 10 – 18 seconds.
Intelligent technology: stops automatically when hands are removed or after 18 seconds.
Removable drip tray prevents any water dripping onto the wall or floor: easy to clean and service.
ON/OFF button: easy to service.
Anti-bacterial air filter and activated carbon air filter.
Automatic activation via infrared detection.
LCD screen with animated user guide and automatic stand-by.
Dimensions: 250 x 292 x 650mm.
Weight: 11.4kg.
Brushless motor, no wear.
Energy saving: power 850W. No heating element.
220-240V~/50-60Hz.
Airflow: 42 l/second. Air speed: 310km/h.
Noise level: 75-80 dBA.
Class I, IP22.
CE marked.
3-year warranty.
SECURITHERM shower panel
Ref. 79240015
Thermostatic electronic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks and Ø 15mm conical inlets.
SECURITHERM thermostatic mixer.
Adjustable temperature: from cold water to 38°C: 1st limiter set at 38°C, 2nd limiter set at 41°C.
Anti-scalding safety: instant shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is within 4cm of the sensor.
Shuts off on demand or automatically after 60 seconds.
Duty flush (~60 seconds every 24 hours after last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
10-year warranty.
Eye wash and safety shower combination
Ref. 9203
Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1″.
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: “Safety Shower” and “Eye Wash”.
Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).
Wall-hung trough urinal
Ref. 130110
Wall-hung trough urinal.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F1/2″. Drainage on the right.
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsingof urinal surface.
Water savings: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½”.
Supplied with fixing elements.
Without trap.
Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 24.8kg.
This Doc M pack is designed to provide a toilet facility with additional support for the user.
Complies with Doc M of the Building Regulations
TMV3 approved in-line under basin mixer valve
LABC approved
WRAS approved Includes concealed cistern
Image for illustration purposes only. Grab rails available in Polished Stainless Steel or Satin Stainless Steel
Anti-bacterial BIOFIL shower head filter
Ref. 20060.10P
Single use removable BIOFIL anti-bacterial shower head filter, with sterilising grade of 0.1μm absolute-rated.
Hydrophilic polyethylene hollow fibres.
Filtration area: 1,400cm².
Filtration flow rate: 12 lpm at 3 bar (filter only, excludes any flow rate restrictor/regulator in the shower).
Maximum upstream pressure at point-of-use: 5 bar.
Length of maximum use: 62 days after installation.
Compatible with and resistant to chemical and thermal shocks.
CE class 1 sterile anti-bacterial filters.
Weight: 120g.
Supplied in boxes of 10, individually wrapped, sterile.
COMPANY INFORMATION
01924 457600
Mon-Thursday 8.30am – 5pm
Friday: 8.30am – 3pm
OUR POLICIES
SECURE PAYMENTS BY
Registered in England: 06851971 | VAT no. 380618882 | © Plumbware.co.uk Ltd 2009 - 2024
