SIAMP BCM350/1100 Back Plate Flush Plate attachment
SIAMP Product code: 34115846
-
Concealed cistern for back to wall WC. WRAS and NF approved components. Cable flushing, bright chrome dual flush top flushing. 6 litres cistern equipped with a dual flush outlet valve and a quiet fill inlet valve. Water inlet connection on the bottom of the cistern with 1/2″ plastic tail. Dimensions height 436 mm, width 260 mm and depth 160 mm.
Delivered with fixing and connection accessories. -
Bottom entry inlet valve with 1/2″ brass connection. WRAS certified 10-year-guarantee.
Features: adjustable height, low pressure, quiet, hydraulic closure, adjustable water level and anti-back flow. Length 270mm, width 112mm, depth 50mm. -
Dual flush valve NF and WRAS certified, compact and water saving. The stirrup fixes the cistern lid once the button is screwed down and enables a non alignment position. Adjustable button with optional collar.
Adjustable height from 282 and 432 mm, lid hole from 16 to 50, discharge hole from 58 to 72 mm. Adjustable : small flush, over flow (with no cut), dead water level. -
Dual flush valve NF and WRAS certified, compact, water saving and cable operated. It allows an actuation at distance, lateral or head-on. Adjustable button with optional collar.
Adjustable height from 272 and 482 mm, lid hole from 16 to 50, discharge hole from 58 to 72 mm. Adjustable : small flush, over flow, dead water level. -
Product Description
This Doc M pack is designed to provide a toilet facility with additional support for the user.
Complies with Doc M of the Building Regulations
TMV3 approved in-line under basin mixer valve
LABC approved WRAS approved
Rust-resistant grade 304 stainless steel
Grab Rails -

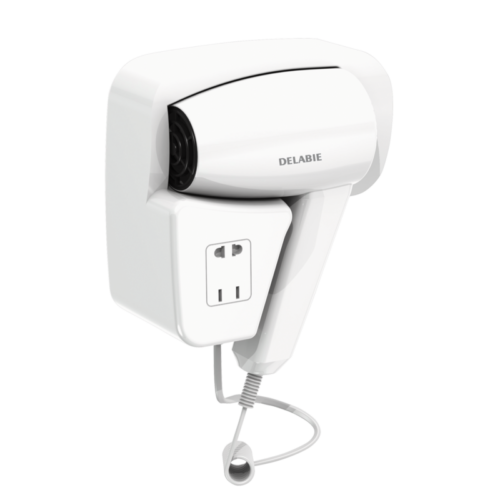

Wall-mounted hair dryer with shaver socket
Ref. 6624Wall-mounted hair dryer.
Operated by sensor switch.
Safety switch on the cradle.
2 drying temperatures.
Shaver socket.
White ABS cover.
Dimensions: 110 x 180 x 170mm.
Weight: 1.3kg.
Power: 1,200W. Air flow: 14 l/sec.
Class II. CE, TÜV GS.
Warranty: 3 years. -
Stainless steel toilet signs
Ref. 510151SStainless steel self-adhesive toilet sign.
Polished satin 304 stainless steel.
Stainless steel thickness 1.2mm.
“Female” sign.
Dimensions: 125 x 125mm.
10-year warranty. -
Stainless steel toilet sign
Ref. 510155SStainless steel self-adhesive toilet sign.
Polished satin 304 stainless steel.
Stainless steel thickness 1.2mm.
“Mixed disabled” sign.
Dimensions: 125 x 125mm.
10-year warranty. -
U-shaped toilet roll holder with spindle
Ref. 4081EWU-shaped toilet roll holder with spindle.
Tube Ø 20mm, 1mm thick.
White powder-coated 304 stainless steel.
Concealed fixings.
10-year warranty. -
U-shaped toilet roll holder with spindle
Ref. 4081SU-shaped toilet roll holder with spindle.
Tube Ø 20mm, 1mm thick.
Polished satin 304 stainless steel.
Concealed fixings.
10-year warranty. -
Wall-mounted soap dish
Ref. 710501Wall-mounted soap dish with concealed fixings.
Robust model for public places.
Chrome-plated Bayblend® bright finish.
Dimensions: 60 x 160 x 40mm -
Adjustable height floor trap
Ref. 683001UKFloor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (standard).
Water level 50mm.
Bright polished stainless steel plate and grid 150x150mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grill fixed with two stainless steel screws.
10-year warranty. -
Liquid soap dispenser
Ref. 729150Wall-mounted liquid soap dispenser for cross wall installation for walls up to 180mm.
For remote tanks (tank not supplied).
Chrome-plated brass body and push-button, with flexible pipe 6/8, L. 1.20m.
Non-drip system (waterproof).
Mechanism can be locked via grub screw.
For remote tanks (tank not supplied) supplied with a 1.2m rilsan tube for remote tanks.
10-year warranty. -
Splashback 1400mm for CANAL wash trough
Ref. 100260Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 1,400mm. -
MONOBLOCO S21 WC pan with cistern
Ref. 110390Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 815 x 620mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 21kg.
10-year warranty. -
SECURITHERM shower panel
Ref. H963915SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Hygiene control lever L. 100mm.
Top inlets with M1/2″ stopcocks.
With copper tails.
Concealed fixings and filters.
10-year warranty. -
SECURITHERM shower panel
Ref. H9635SECURITHERM anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated rail with flexible hose.
Hygiene control lever L. 100mm.
Concealed supply via M1/2″ flexibles.
Concealed fixings and filters.
10-year warranty.
