EASY TO SPECIFY
SIMPLE BOX SYSTEM
DISPATCHED WITHIN 3-5 WORKING DAYS
ADJUSTABLE ON SITE
Pendle white toilet cubicle door pack with white pilasters BOX A
Pendle Cubicle Door Pack (Box A)

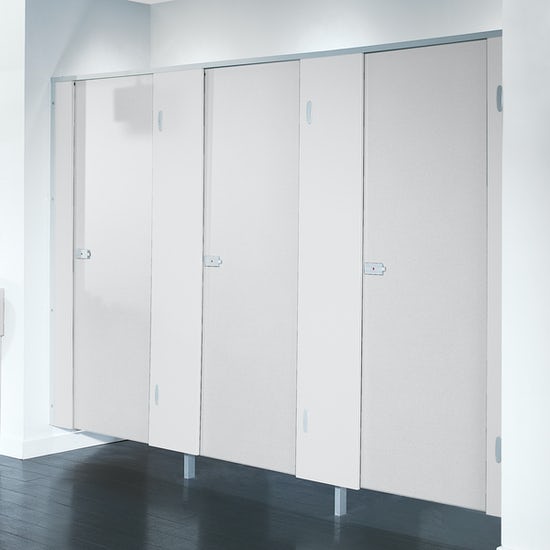

Pendle white toilet cubicle door pack with white pilasters
White door panels need to be matched with the white partitions box B pack
From the Pendle range, this white toilet cubicle door is framed by white pilasters which provides a clean, modern finish to the traditional cubicle row and will give a professional look to your cubicles whether installed in a row or singly.
The Pendle Commercial toilet cubicle pack system is a two box system, Box A consisting of everything needed to make a cubicle between two existing walls, and Box B, additional freestanding side partitions. The cubicle door supplied in Box A measures 950mm (wide) and is to be cut-to-size on site. This cut is then concealed by the full-height door hinge channel.
The Pendle Box A Pack also includes an Outward Opening Adaptor to complete a cubicle door fitted for outward opening use.
Pendle cubicle fittings are DDA (Disability Discrimination Act) Compliant. The cubicle latch is suitable for users with impaired manual dexterity (i.e. can be operated with a ‘closed fist’)
This pack contains all the necessary panels and fittings to create an enclosed toilet cubicle with a max. width of 1200mm.
Box A includes:
- Door (1800 x 950mm)
- End Pilasters (1800 x 150mm)
- Lock & Latch with Outward Opening Adaptor
- Channels, Head Rail and fittings
Additional Info
Box A Dimensions
Height: 1820mm
Width: 970mm
Depth: 70mm
Box Weight: 33.00Kg
Pendle Toilet Cubicle Door Pack (Box A) Contents:
- 1800mm x 950mm door panel
- 1800mm x 150mm closing fascia panel
- 1800mm x 150mm hinge fascia panel
- 1800mm long channel hinge assembly
- Indicator bolt, keep and outward opening adaptor
- 2000mm long header rail
- 2no. 1775mm long PVC fixing channels
- Pack of 8x T-Nut fixings
This pack contains all the necessary panels and fittings to create an enclosed cubicle (within pre-built walls or partitions) with a maximum width of 1200mm.
- Durable MFC panels with tough 2mm PVC edging
- DDA compliant
- Not suitable for use in shower areas
