BLM 400 1.1m Basin Frame

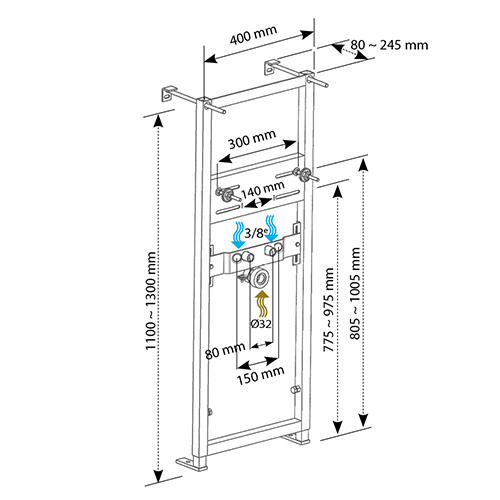

Wall frame for wall hung washbasin, 10-year guarantee, 2 wall fixing points. Adjustable height from 1100 to 1300 mm, width 400 mm, adjustable depth from 80 to 245 mm. Adjustable height position of washbasin, water supply and drain.
Supplied with fixing and connection accessories.



£140.00 ex VAT

Usually despatched within 3 working days

Quantity:

Additional Info

  • For installing a wall hung washbasin
  • Wall frame bearing a 150kg load
  • Designed for wall installation
  • Steel tube structure, 30x30x1,5mm, electro-welded and anticorrosion treated (epoxy paint withstanding 200 hours of salt spray)
  • Feet are made from epoxy painted steel plate (100x30x8mm) and electro-welded epoxy painted steel tubes (25x25x3mm), fixed to the floor
  • Can be fixed to the wall using 2 fixing brackets
  • 2 water supply connection points
  • Washbasin height adjustment
  • Washing fixing accessories
  • Water supply and drain height adjustable position
  • Water inlet connection thanks to end-fittings 3/8″ M/F
  • Suitable for 32mm diameter PVC drain pipe
